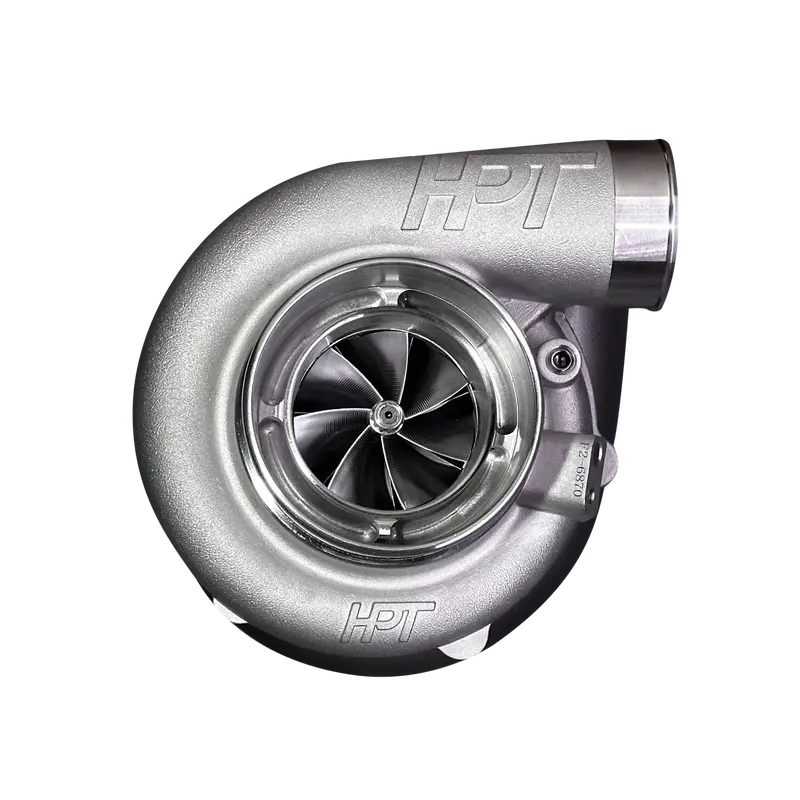

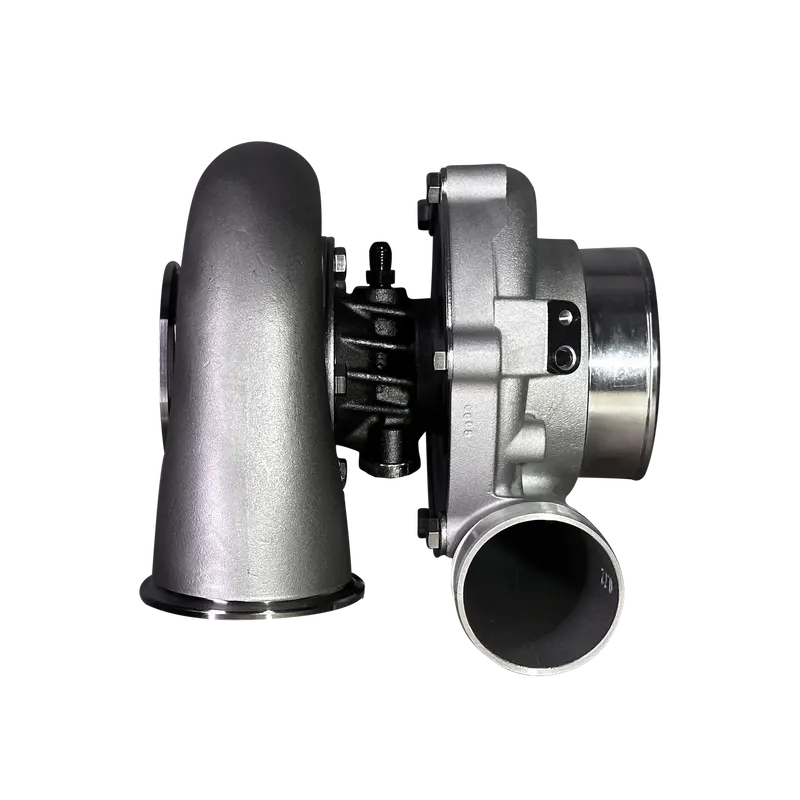

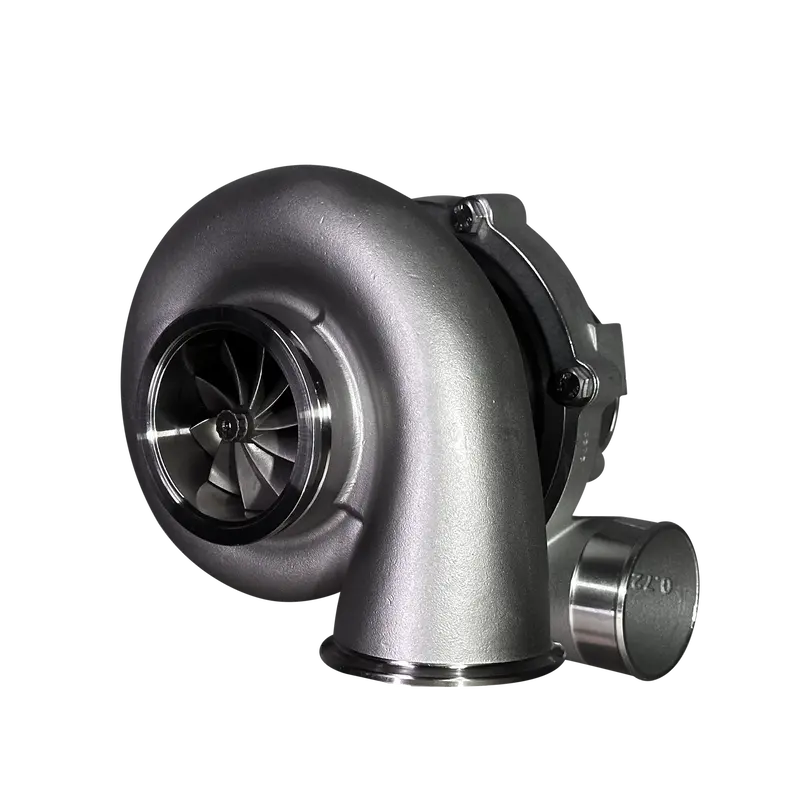

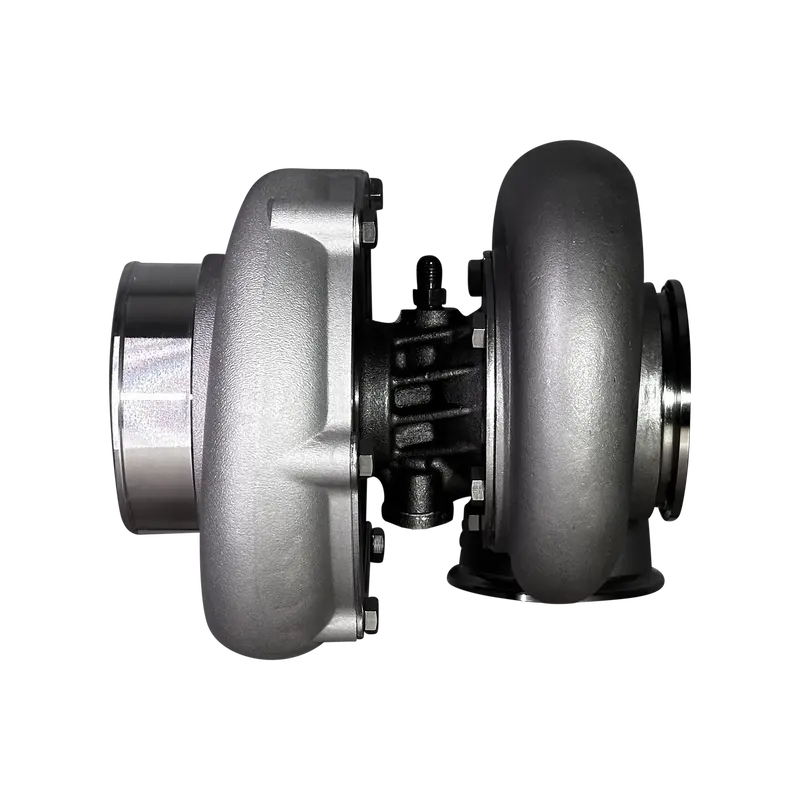

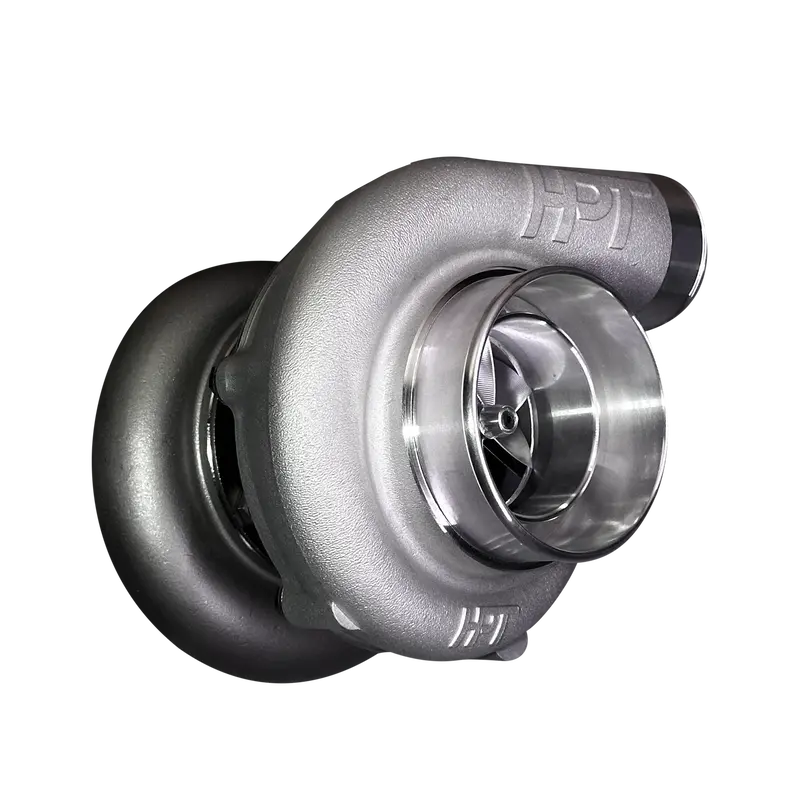

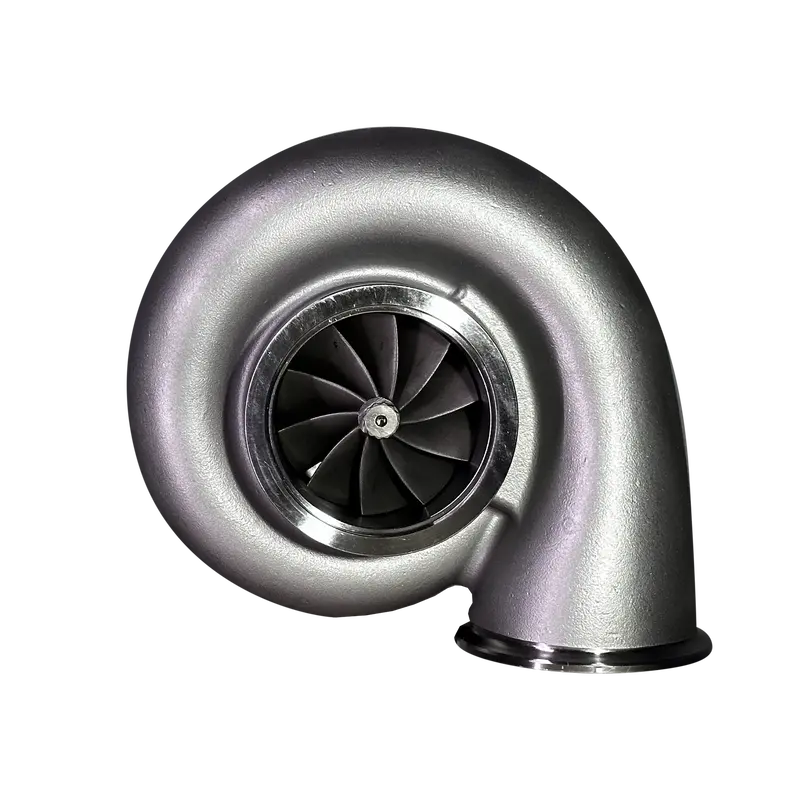

HPT F2 Series 6870 High-Performance Turbocharger

Description

• Capable of Supporting up to 1150 Horsepower

  The F2 6870 Turbocharger is equipped with HPT’s Quick Spool Technology, providing high efficiency with minimal lag.



  Alongside the bearing system, HPT turbochargers boast superior aerodynamics with lightweight rotating groups. This combination of low-resistance bearings and optimized airflow allows for a larger turbo size without sacrificing transient response.

  Features:

  • F2 Compressor Cover w/ Ported Shroud
  • 2618 Aluminum Compressor Wheel
  • 713C Inconel Turbine Wheel
  • Cast Iron Bearing Housing w/ Integrated Back Plate
  • Ceramic Dual Ball Bearing System
  • 310 Investment Cast Stainless Steel Turbine Housing

  Specs:

  • Compressor Cover Inlet: 4″
  • Compressor Cover Discharge: 2 1/2″
  • Compressor Wheel Inducer: 68.49mm
  • Turbine Wheel Exducer: 70.00mm

  Stainless Steel Turbine Housing Options:

  • V-band Inlet V-Band Discharge 1.07 A/R (2.25″ Inlet)
  • V-Band Inlet V-Band Discharge 0.96 A/R (3.00″ Inlet)
  • T3 Inlet V-Band Discharge 1.10 A/R
  • T4 Inlet V-Band Discharge 0.82 A/R
  • T4 Inlet V-Band Discharge 0.96 A/R
  • T4 Divided Inlet V-Band Discharge 0.84 A/R
  • T4 Divided Inlet V-Band Discharge 1.00 A/R
  • T4 Divided Inlet V-Band Discharge 1.18 A/R (Coming Soon)

  Racing Use Only, Not Legal for Road Use
